Home > CHAIN HOIST >

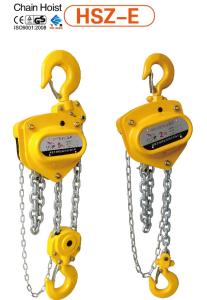

3 TON CHAIN BLOCK HSZ

Product Categories

TONGLING SHENDIAO MACHINERY MANUFACTURING CO.,LTD

Contact Now

Place of Origin : Anhui

Brand Name : FEIDIAO

Certification : CE, ISO

Model Number : HSZ-E

MOQ : 10PCS

Price : negotiation

Packaging Details : carton, plywood case or pallet for 3 ton chain block

Delivery Time : 40days for 3 ton chain block

Payment Terms : T/T or L/C for 3 ton chain block

Supply Ability : 50000 for 3 ton chain block

Contact Now

HSZ-E 3 ton Chain Block Specifications:

Chain Pulley block Features:
1)CE certificated
2)Safety in operation with easy maintenance
3)It is excellent performance

Model		HSZ-0.5E	HSZ-1E	HSZ-2E	HSZ-3E	HSZ-5E	HSZ-10E	HSZ-20E
Capacity load	t	0.5	1	2	3	5	10	20
Standard lift	m	2.5	2.5	2.5	3	3	3	3
Test load	t	0.75	1.5	3	4.5	6.25	12.5	25
Effort to rated capacity	N	200	304	314	268	383	392	395x2
No of load chain		1	1	1	2	2	4	8
Diameter of load chain	mm	6	6	8	8	10	10	10
Dimensions	A	131	140	170	170	186	207	215
mm	B	127	158	187	220	253	398	650
	D	36	36	45	50	62	85	110
	K	24	28	36	38	48	64	85
	Hmin	270	317	420	480	635	700	1000
Net weight	kg	8.4	11	17.5	26	43	70	158
Extra weight per meter of extra lift	kg	1.7	1.7	3.2	3.7	5.3	9.7	19.4

3 TON CHAIN BLOCK HSZ
